GSS Helicopter Mounts
GSS Camera Utility Mounts for Robinson R44 and R66 helicopters are FAA and EASA approved, no-modification solutions for airborne cinema, broadcast, utility inspection, surveillance, and LIDAR. Install in 60 minutes. Transport in a single case.
GSS R44 Mount
GSS R44 Mount
The GSS R44 Mount attaches to the Robinson R44 with no aircraft modifications — aluminum brackets clamp directly to the skids, and the rigid steel tube positions the payload well forward for a completely unobstructed 360° field of view. The three-piece tube design packs into a single transportable case.
Approvals: FAA STC and EASA approved Max load: 100 lbs Install time: 60 min (weldment alone: 20 min) Compatible with: Pop-out float-equipped helicopters, early and late model landing gear Taper interface: Accepts CF-10 Male Taper Assembly (MeekerAviation.com) Counterweight: 41 lb counterweight included for optional use
GSS R66Mount
GSS R66 Mount
The GSS R66 Mount brings the same no-modification, FAA/EASA-approved design to the Robinson R66 — with a higher max load capacity to accommodate larger payloads. Three-piece tube design, single-case transport, and the same 360° unobstructed view.
Approvals: FAA STC and EASA approved Max load: 115 lbs Install time: 60 min Compatible with: Pop-out float-equipped helicopters Taper interface: Accepts CF-10 Male Taper Assembly (MeekerAviation.com) Counterweight: 41 lb counterweight included for optional use
GSS Counterweight
GSS Counterweight

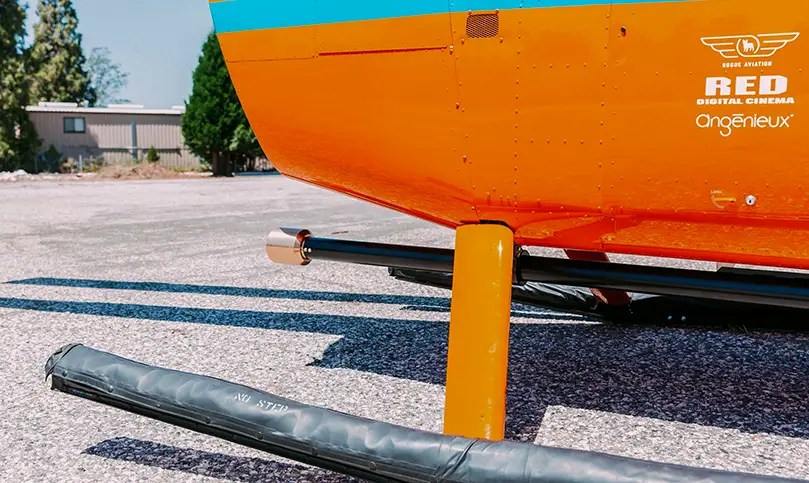

A 41 lb solid brass counterweight is included with both R44 and R66 mounts for optional use, depending on equipment weight and passenger loading. FAA STC and EASA approved.
GSS Vibration Isolators
GSS Vibration Isolators
The GSS Vibration Isolator sits between the mount and the gimbal, improving image stability through vibration dampening while saving nearly 10 lbs over existing solutions and adding nearly 2 inches of ground clearance. Available in universal and taper configurations.
Vibration Isolator (Universal)
Built-in taper assembly or universal mounting plate — compatible with existing mounts and bolt patterns. Gimbal mounting hardware accessible without disassembly.
Vibration Isolator (Taper)
Diameter: 16 in (40.64 cm) Height: 2.5 in (6.35 cm) Weight: 10.3 lbs (4.67 kg)
Need a mount configuration not listed here?
Questions about compatibility with your aircraft or payload? We’ve got answers.
GSS ISOLATOR SPRING CONFIGURATIONS
